Factory Price steam heating autoclave kettle for AAC block factory use AAC Brick making Plant in Egypt
AAC Steam Autoclave is also called still kettle,a large,heavy pressure container which is widely used in autoclaved aerated concrete block, concrete pipe pile, lime-sand brick, fly ash brick, microporous calcium silicate board, insulation asbestos board, high-strength gypsum building materials.
Generally after the process of steam curing (in fact it is Cao-Si02- H2O water thermal chemical reactions that take place inside the autoclave) products get the ultimate strength,it is the desired effect of increased service life.It also suitable for rubber and wood drying and anti-corrosion,etc.
Autoclave Characters:
1. Autoclaved kettle drawings to let rules by the standard, 150 gb machinerydepartment the fourth design design.
2. 16 MnR containers of anyang, selection of special plank, surrounded by mouth, planer edge break the autoclaved kettle oil a compilation process, build welding the Shanghai people's automatic submerged solitary welding equipment, 100% X-ray scan pressure parts inspection, ensure welding process.
3. Kettle circle, kettle door adopt 16Mn secondary forging parts, annealing, heat treatment, kettle door already heat preservation before they leave the factory.
4. Deceleration machine adopts turbine vortex rod, unlike other manufacturers of cycloidal pinwheel reducer, triple security protection (1) electronic interlocking device (2) manual interlocking device (manual screw) (3) hand reducer.
5. 2 x 21 metres kettle, can accommodate 20 thousand dollars standard bricks, 28.8 meters 3 gas block; 2 x 31 meters kettle, can accommodate 3 million pieces of standard bricks, 39 meters 3 gas block;
6. 21 meters kettle with the weight of 14mm 16mm, are 2 tons; 31 meters kettle with the weight of 14mm 16mm, there is difference of three tons;
Technical specification
| Model | Internal diameter (m) | Effective length(m) | Designed pressure(Mpa) | Designed temperature
(°C) | Working medium | Length×Wide×Height (mm) | Weight (ton) |
| FGZCS1.0-1.65×21 | 1.65 | 21 | 1 | 187 | Saturation steam | 22650×2619×2695 | 21.5 |
| FGZCS1.3-2×21 | 2 | 21 | 1.3 | 198 | 23300×2980×3340 | 24.7 |
| FGZCS1.3-2×27 | 2 | 27 | 1.3 | 198 | 2930×2980×3340 | 30.5 |
| FGZCS1.3-2×31 | 2 | 31 | 1.3 | 198 | 33300×2980×3340 | 33.4 |
| FGZCS1.3-2.5×27 | 2.5 | 27 | 1.3 | 198 | 29560×3254×4117 | / |
| FGZCS1.3-2×31 | 2.5 | 31 | 1.3 | 198 | 33560×3254×4117 | / |
Usage:
Autoclave is also pressure vessel .It use for autoclaved cure aerated concrete block,concrete pipe pile, bricks,coal dust brick, micro pore calcium silicate board, new style wall material ,insulation asbestos, high strength gypsum and so on building material.
There will be a hydro-thermal reaction like Cao—Si02—H2O, Meanwhile it widely use in rubber, wood drying , wood preservative, heavy metal smelting, glass autoclaved, high temperature high pressure of food, pulp cooking, cable vulcanization and so on.

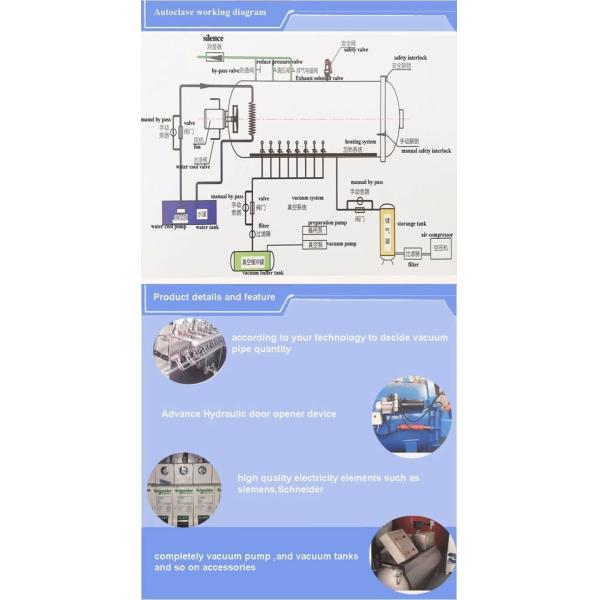

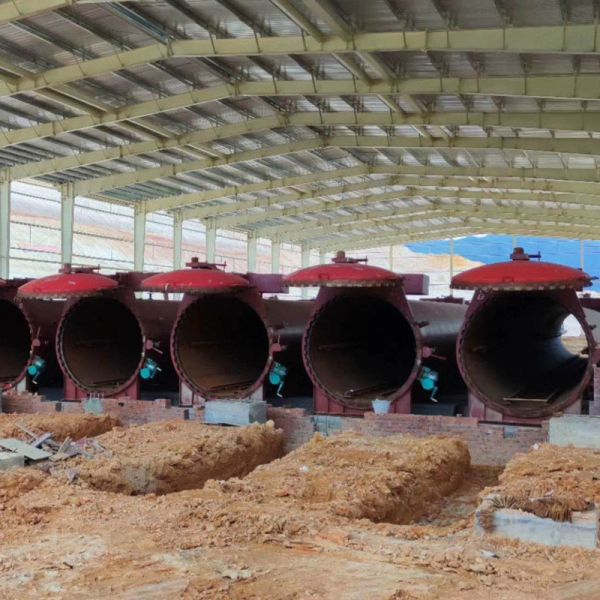

Autoclave picture
|
|
Factory Price steam heating autoclave kettle for AAC block factory use AAC Brick making Plant in Egypt Images
|
